Are you looking for an answer to the topic “Which low-pass filter is best 1st order or 2nd order?“? We answer all your questions at the website Ecurrencythailand.com in category: +15 Marketing Blog Post Ideas And Topics For You. You will find the answer right below.
The main difference between a 1st and 2nd order low pass filter is that the stop band roll-off will be twice the 1st order filters. ➢ In the second order low pass filter configuration and the second order high pass filter configuration, the only thing that has changed is the position of the resistors and capacitors.A capacitive low-pass filter requires an extra resistance in series with the source, whereas the inductive low-pass filter does not. In the design of a high-current circuit like a DC power supply where additional series resistance is undesirable, the inductive low-pass filter is the better design choice.A first order filter would have one capacitor or one inductor, that affects the filters frequency response. A second order filter would have two capacitors or two inductors, or one capacitor and one inductor, that affects the filter’s frequency response.
- High impedance input, low impedance output.
- greater attenuation at high range (-40dB/decade as opposed to -20dB/decade for RC filter)
Which low-pass filter is best?
A capacitive low-pass filter requires an extra resistance in series with the source, whereas the inductive low-pass filter does not. In the design of a high-current circuit like a DC power supply where additional series resistance is undesirable, the inductive low-pass filter is the better design choice.
What are the advantages of second order filter over first one?
- High impedance input, low impedance output.
- greater attenuation at high range (-40dB/decade as opposed to -20dB/decade for RC filter)
Low Pass Filters and High Pass Filters – RC and RL Circuits
Images related to the topicLow Pass Filters and High Pass Filters – RC and RL Circuits
What is the difference between first and second order filters?
A first order filter would have one capacitor or one inductor, that affects the filters frequency response. A second order filter would have two capacitors or two inductors, or one capacitor and one inductor, that affects the filter’s frequency response.
Is higher order filter better?
1.4 Higher-Order Low-Pass Filters. High-order filters are used because they have the ability to roll off gain after the bandwidth at a sharper rate than low-order filters. The attenuation of a filter above the bandwidth grows proportionally to the number of poles.
What is 1st order low-pass filter?
First Order Low Pass Filter
This first-order low pass active filter, consists simply of a passive RC filter stage providing a low frequency path to the input of a non-inverting operational amplifier.
What is second order low-pass filter?
A Second Order Low Pass Filter is to be design around a non-inverting op-amp with equal resistor and capacitor values in its cut-off frequency determining circuit. If the filters characteristics are given as: Q = 5, and ƒc = 159Hz, design a suitable low pass filter and draw its frequency response.
What is the difference between 1st order low pass filter and 2nd order low pass filter?
The main difference between a 1st and 2nd order low pass filter is that the stop band roll-off will be twice the 1st order filters. ➢ In the second order low pass filter configuration and the second order high pass filter configuration, the only thing that has changed is the position of the resistors and capacitors.
See some more details on the topic Which low-pass filter is best 1st order or 2nd order? here:
Second Order Low Pass Filter – Electronics Tutorials
The main difference between a 1st and 2nd order low pass filter is that the stop band roll-off will be twice the 1st order filters at 40dB/decade (12dB/octave) …
What is the difference between first and second order filters?
First-order filters, both low-pass and lag, work by reducing gain near and above the resonant frequency. They restore some of the gain margin …
First Order and Second Order Low Pass Butterworth Filter
Butterworth Filter: First Order and Second Order Low Pass Butterworth Filter ; Analog or digital; Active or passive ; It is an R-C(Resistor, …
How do I know to choose a first order filter vs a second order …
1 Answer 1 … Based on comments, you want 20 dB of attenuation. A one pole low-pass filter rolls off at 20 dB per decade above its cut-off …
Is the higher order filter disadvantage?
10. State the disadvantage of using higher order filters? Explanation: Although higher order filter than necessary gives a better stop band response, the higher order type is more complex, occupies more space and is more expensive.
What are high low pass filters?
A high-pass filter (HPF) attenuates content below a cutoff frequency, allowing higher frequencies to pass through the filter. A low-pass filter (LPF) attenuates content above a cutoff frequency, allowing lower frequencies to pass through the filter.
What is second order high-pass filter?
Second Order High Pass Butterworth Filters:
The second order high pass Butterworth filters produces a gain roll off at the rate of + 40 dB/decade in the stop band. This filter also can be realized by interchanging the positions of resistors and capacitors in a second order low pass Butterworth filters.
What is first order high-pass filter?
A first-order (single-pole) Active High Pass Filter as its name implies, attenuates low frequencies and passes high frequency signals. It consists simply of a passive filter section followed by a non-inverting operational amplifier.

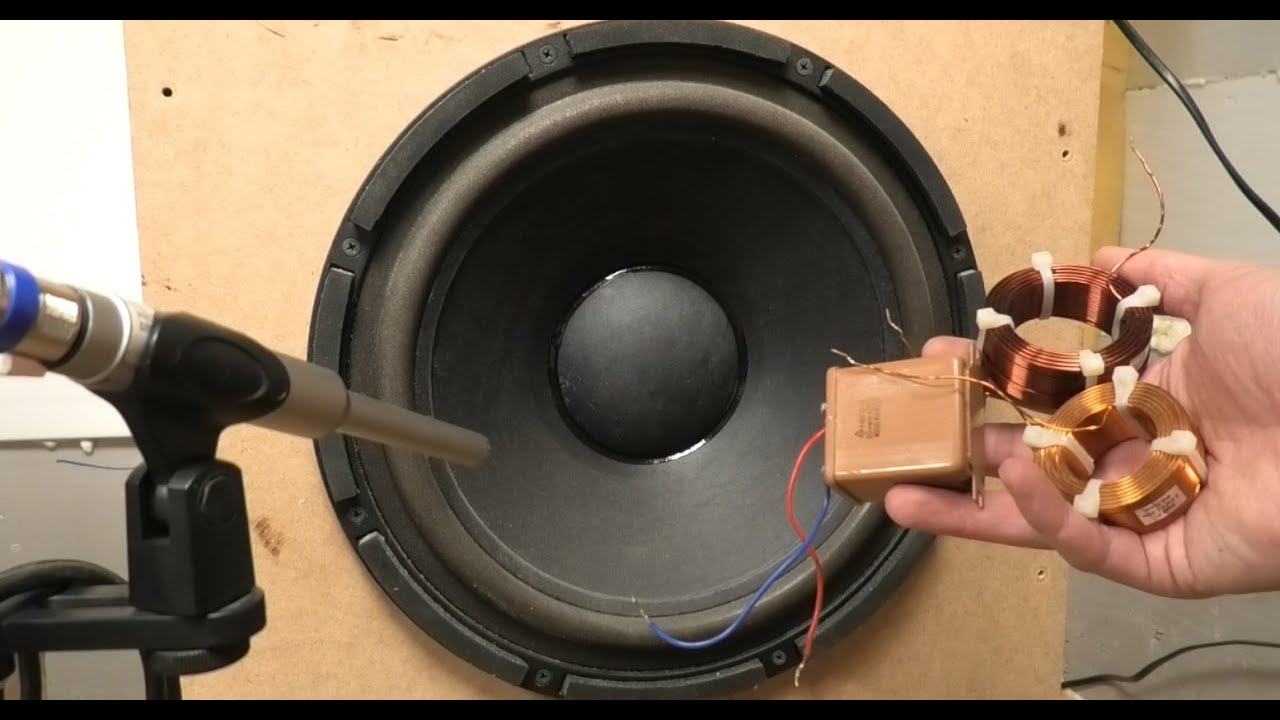

how to make a first or second order low-pass filter? You will see and hear this! building speakers
Images related to the topichow to make a first or second order low-pass filter? You will see and hear this! building speakers
What is 1st order filter?
The order of a filter is determined by the form of the differential equation governing the filter’s behaviour. The simplest type of filter, with the simplest equation, is called a first-order filter.
How do I choose a filter order?
The order of the filter reflects the number of elements that delay your sampling by one – i.e. a first-order filter needs one sample to produce your desired output, a second-order filter needs two samples, etc. Most higher-order filters are made of multiple 1st- or 2nd-order filters.
What happens when filter order is increased?
This means that as the order of the filter is increased, the actual stopband response of the filter approaches its ideal stopband characteristics. In general, a third-order filter produces 60 db/decade, a fourth-order filter produces 80 db/decade and so on.
What happens if order of a filter increases?
Increasing the order of a filter increases its sharpness of cutoff. If we want a sharper transition from passband to stopband, we will use a second order filter instead of first order filter.
What is the most commonly used active filters?
7. What are the most commonly used active filters? Explanation: All the mentioned filters use op-amp as active element and capacitors & resistors as passive elements.
What is RL low-pass filter?
RL Low Pass Filter:
The inductor allows the low-frequency signal to pass which eventually establishes across the resistor and it blocks high-frequency signal which does not make it to the load resistor. Inductor provides low reactance for low-frequency signal & high reactance for a high-frequency signal.
Why are active filters preferred?
Active filters have good isolation between stages, and can provide high input impedance and low output impedance; this makes their characteristics independent of the source and load impedances. Multiple stages can be cascaded when desired to improve characteristics.
What is second-order section?
For many filter types, such as lowpass, highpass, and bandpass filters, a good choice of implementation structure is often series second-order sections. In fixed-point applications, the ordering of the sections can be important.
What is the roll-off rate for a second-order filter?
Higher-order filters have a steeper roll-off. For second-order filters it is 40 dB/decade (or 12 dB/octave) and for third-order filters it is 60 dB/decade (or 18 dB/octave). Each successive order adds a further 20 dB/decade (or 6 dB/octave) to the roll-off.
Which low-pass filter type has the steepest magnitude ratio roll-off?
The magnitude response of elliptic filters is equiripple in the passband and the stopband and is characterized by the steepest rolloff for a given order n.
43- Second-Order Low-Pass Filter
Images related to the topic43- Second-Order Low-Pass Filter
What does the order of a filter mean?
The order of a filter also indicates the minimum number of reactive components that the filter will require. For example, a third-order filter requires at least three reactive components: one capacitor and two inductors, two capacitors and one inductor, or in the case of an active filter, three capacitors.
Which filter has two stop bands?
A bandpass filter typically has two stopbands. The shape factor of a bandpass filter is the relationship between the 3 dB bandwidth, and the difference between the stopband limits.
